BS30C Spider Lifts
Model specifications and quotation enquiry
MODEL BS30C
Plan around the confirmed data.
Maximum Working Height30m
Maximum Platform Height28m
Platform Capacity230 kg
Price on request

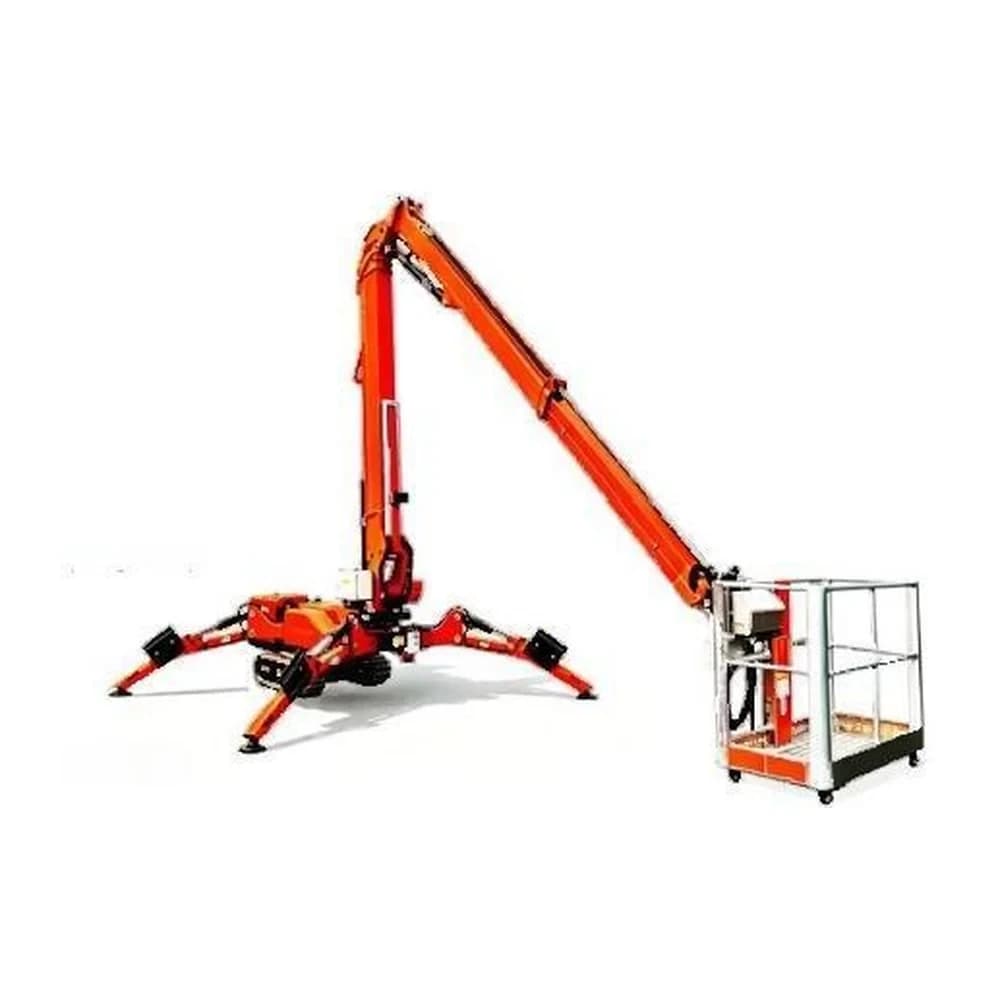

Request a Quote ↗Existing catalogue image; series appearance and model configuration may vary.
Technical specifications
| Maximum Working Height | 30m |
|---|---|
| Maximum Platform Height | 28m |
| Maximum Outreach | 14.8m |
| Up-and-Over Height | 15.8m |
| Negative Depth | -6m |
| Track Width | 1200 mm/1530 mm |
| Platform Length | 1.8m |
| Platform Width | 0.7m |
| Platform Guardrail Height | 1.1m |
| Transport Length | 5940mm |
| Length Basket Removed | 5380 mm |
| Transport Width | 1800 mm |
| Width Basket Removed | 1200 mm |
| Transport Height | 2050 mm |
| Longitudinal Outrigger Span | 5230 mm/6200 mm |
| Lateral Outrigger Span | 4220 mm/3070mm |
| Track | 2063 mm×250 mm |
| Ground Pressure Travel | 6.43 kN/m2 |
| Ground Pressure Work | 2.66 KN/m2 |
| Platform Capacity | 230 kg |
| Gradeability | 30% |
| Travel Speed Max | 1.3 km/h |
| Turntable Rotation | 360° continuousunlimited rotation |
| Control | Wireless remote control |
| Machine Weight | 5500kg |
| Engine | Kubota D110518.2kw |
| Motor | AC220V/3kw |
| Hybrid Battery | 25.6V-280AH |
| Power type | other |
Main features
- Proportional joystick control
- Flashing beacon
- Audible alarm
- Tilt protection
- Diagnostic system
- Display
- Emergency stop
- Emergency lowering
- Emergency brake release
- Safety control system
Optional configuration
Ask about available options for your application.
Application review
Discuss site access, required height, load, floor conditions and the working environment. Suitability depends on the exact configuration.
